Steam and Boiler Installation

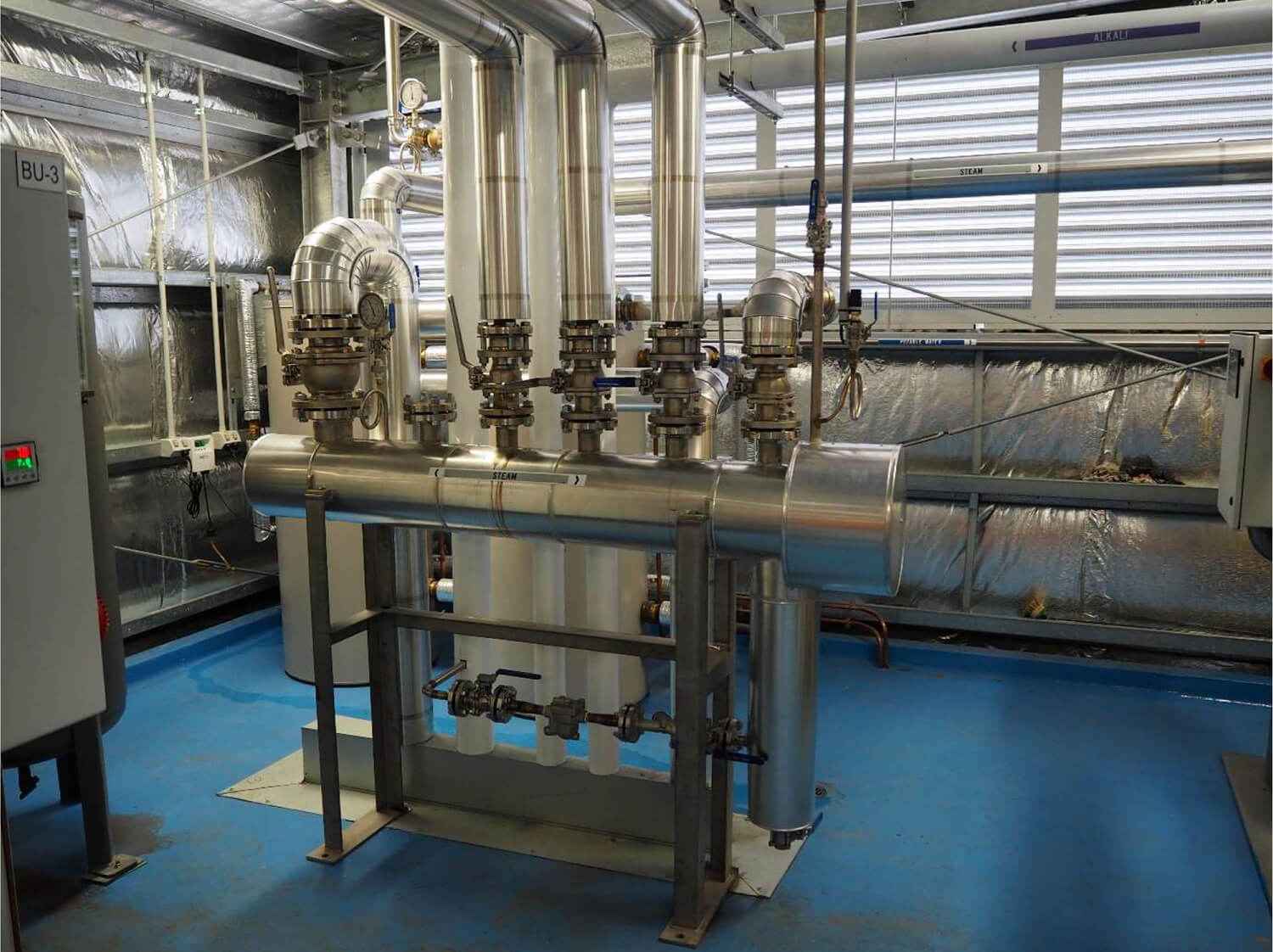

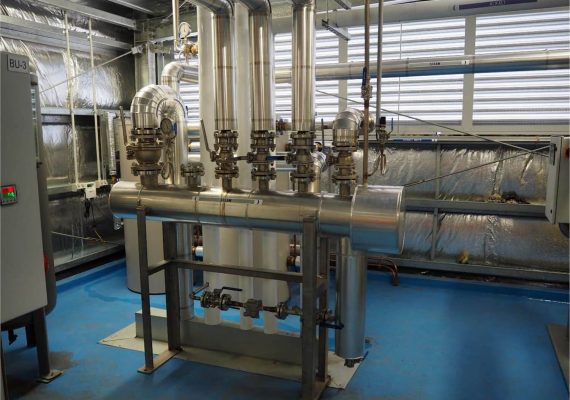

Steam and Boiler Installation-1

View of a steam header that is supplied by three 500kW boilers. Steam supply to the cooking equipment is the 100NB connection at left end of the header.

FMA can design, supply and install steam reticulation systems. Additionally, sanitary grade food piping systems can also be offered.

All FMA steam systems are designed according to ANSI standards using stainless steel pipe and fittings. Where feasible all valves and general components are ANSI flanged to minimise steam and condensate leaks.

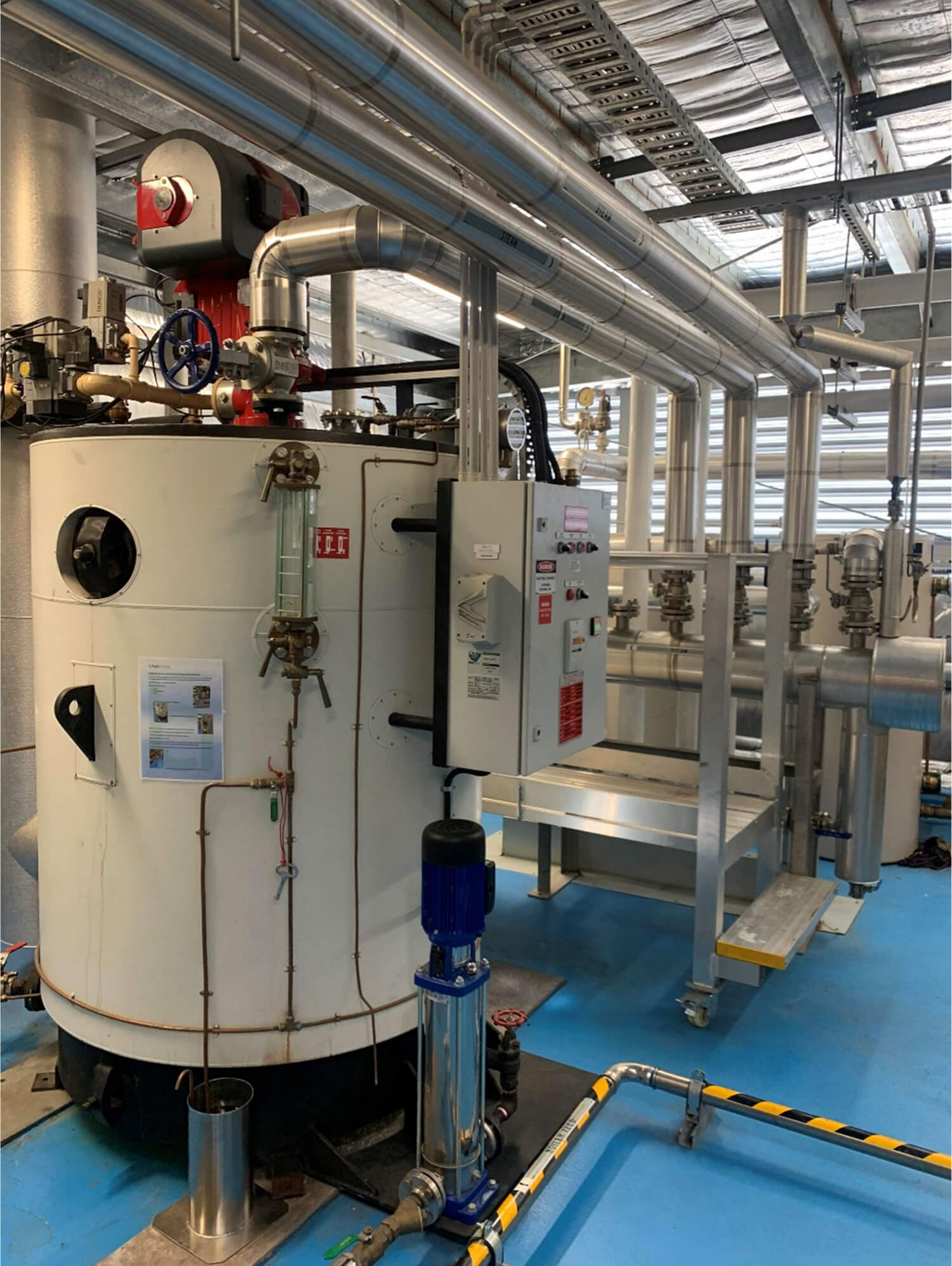

Steam and Boiler Installation-2

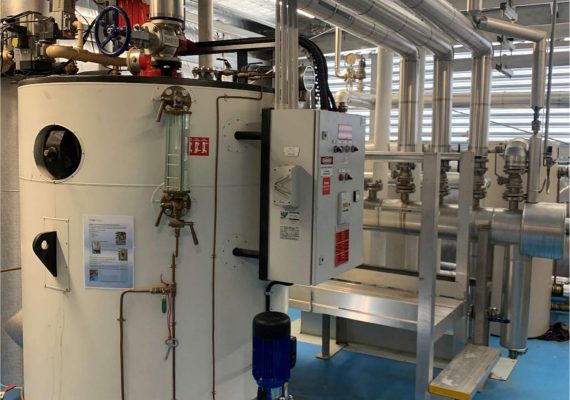

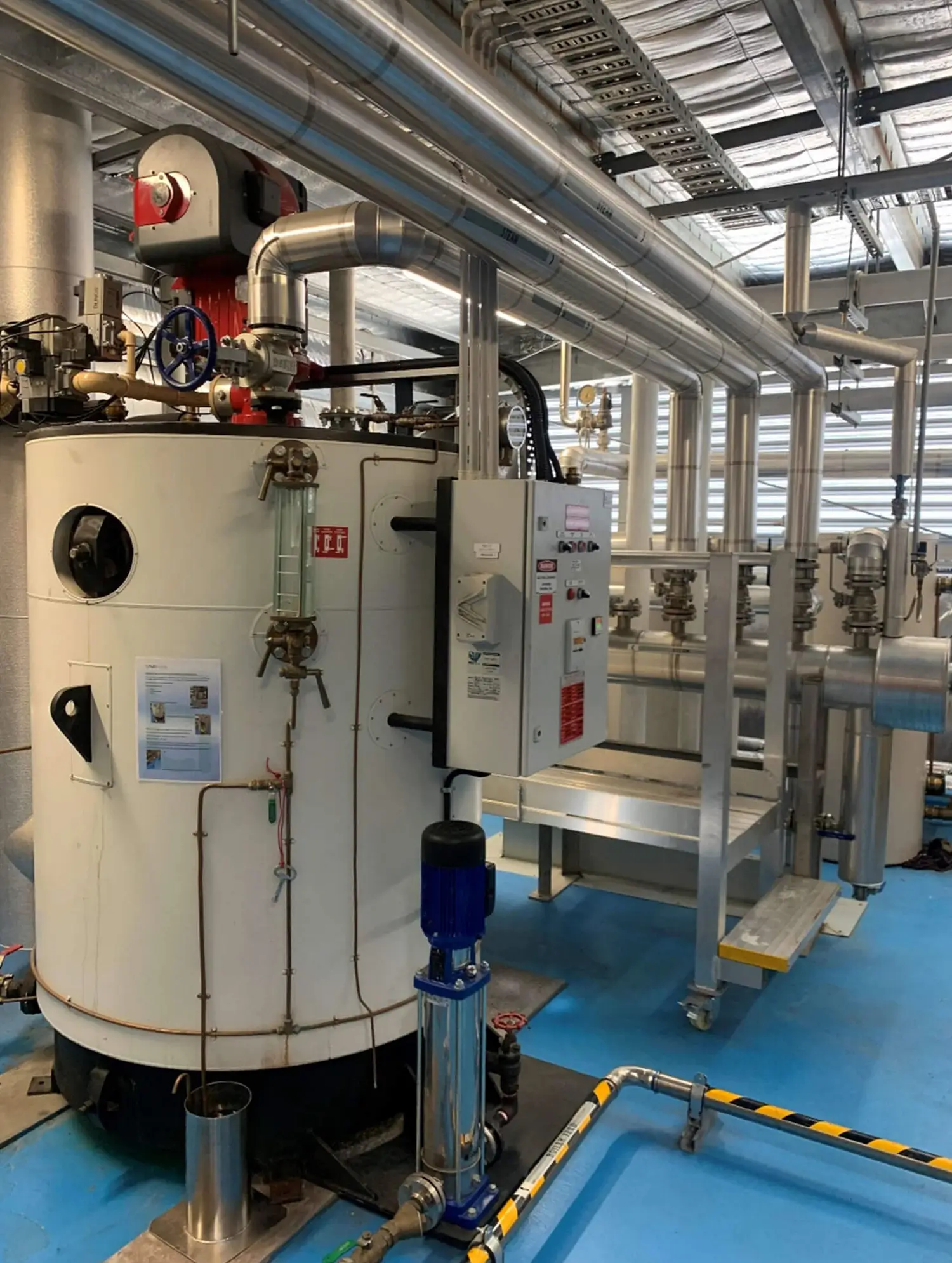

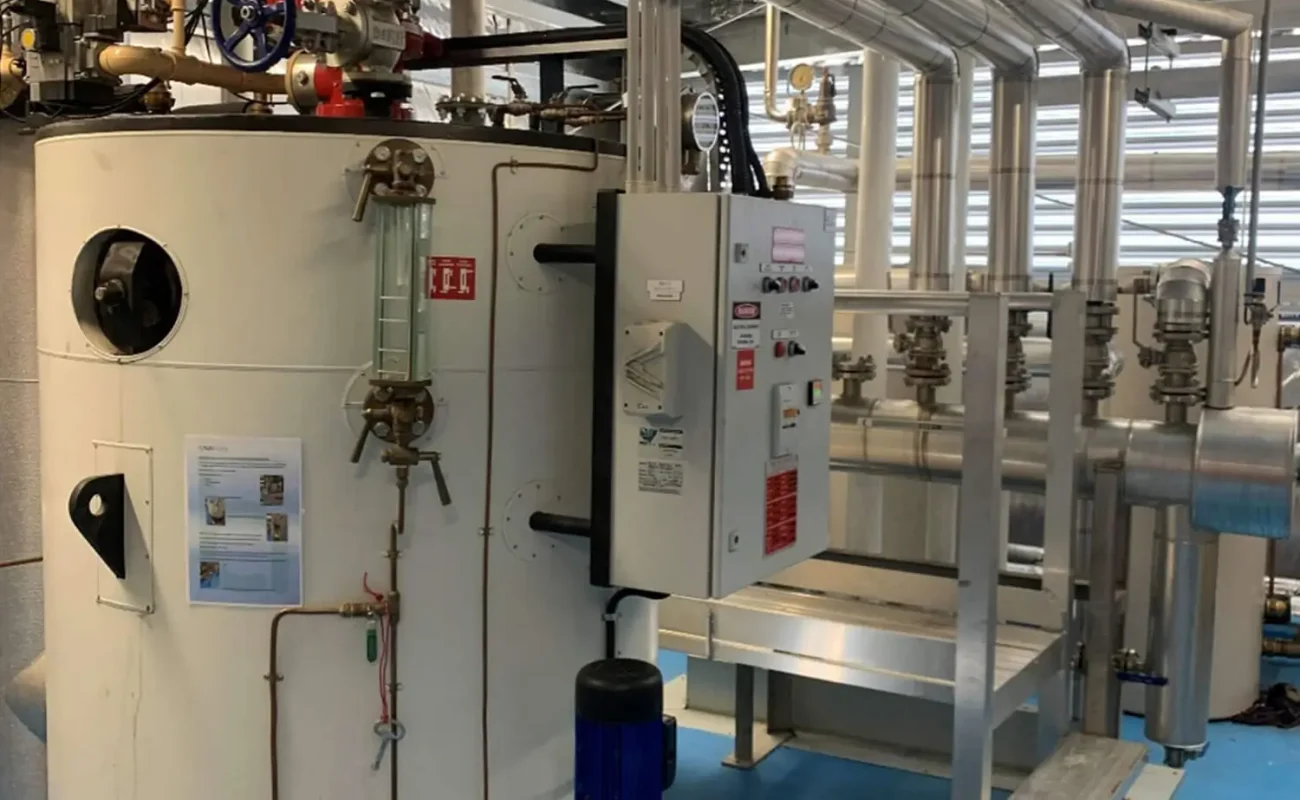

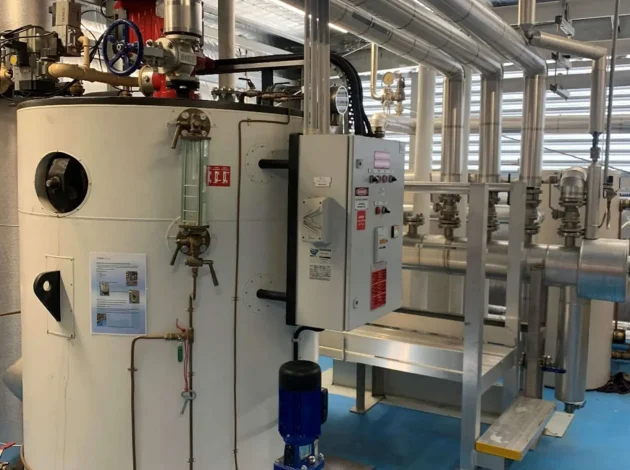

Shown is one of the steam boilers recently installed.

Steam and Boiler Installation-3

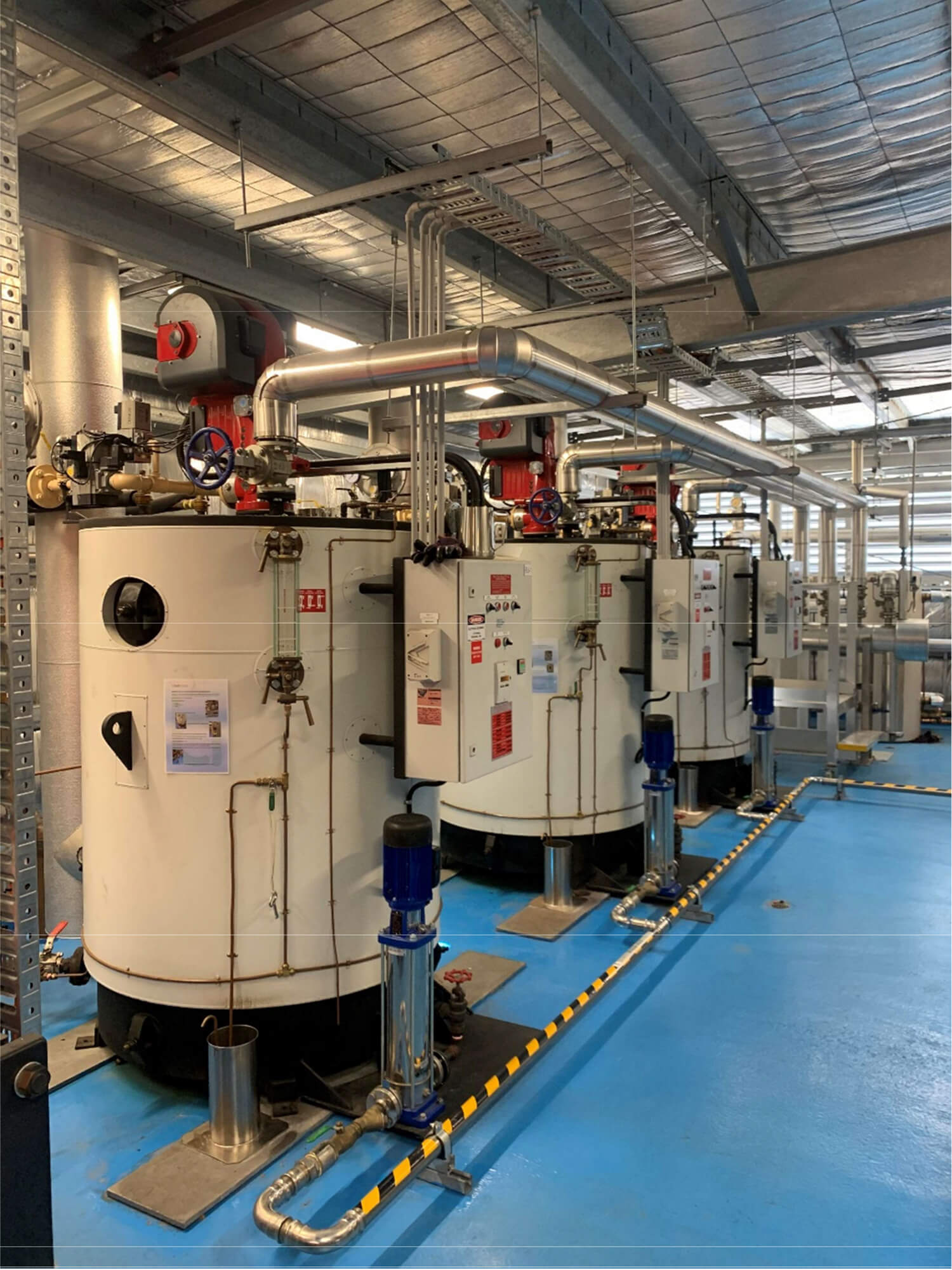

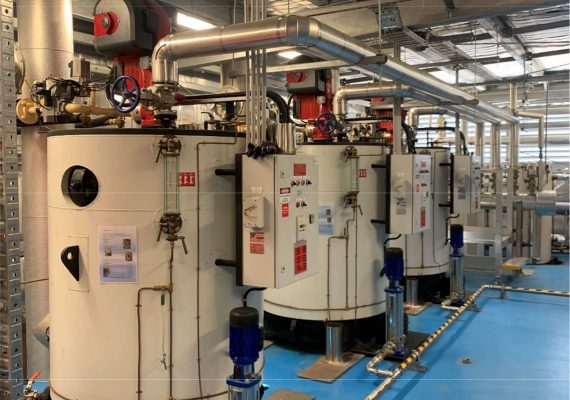

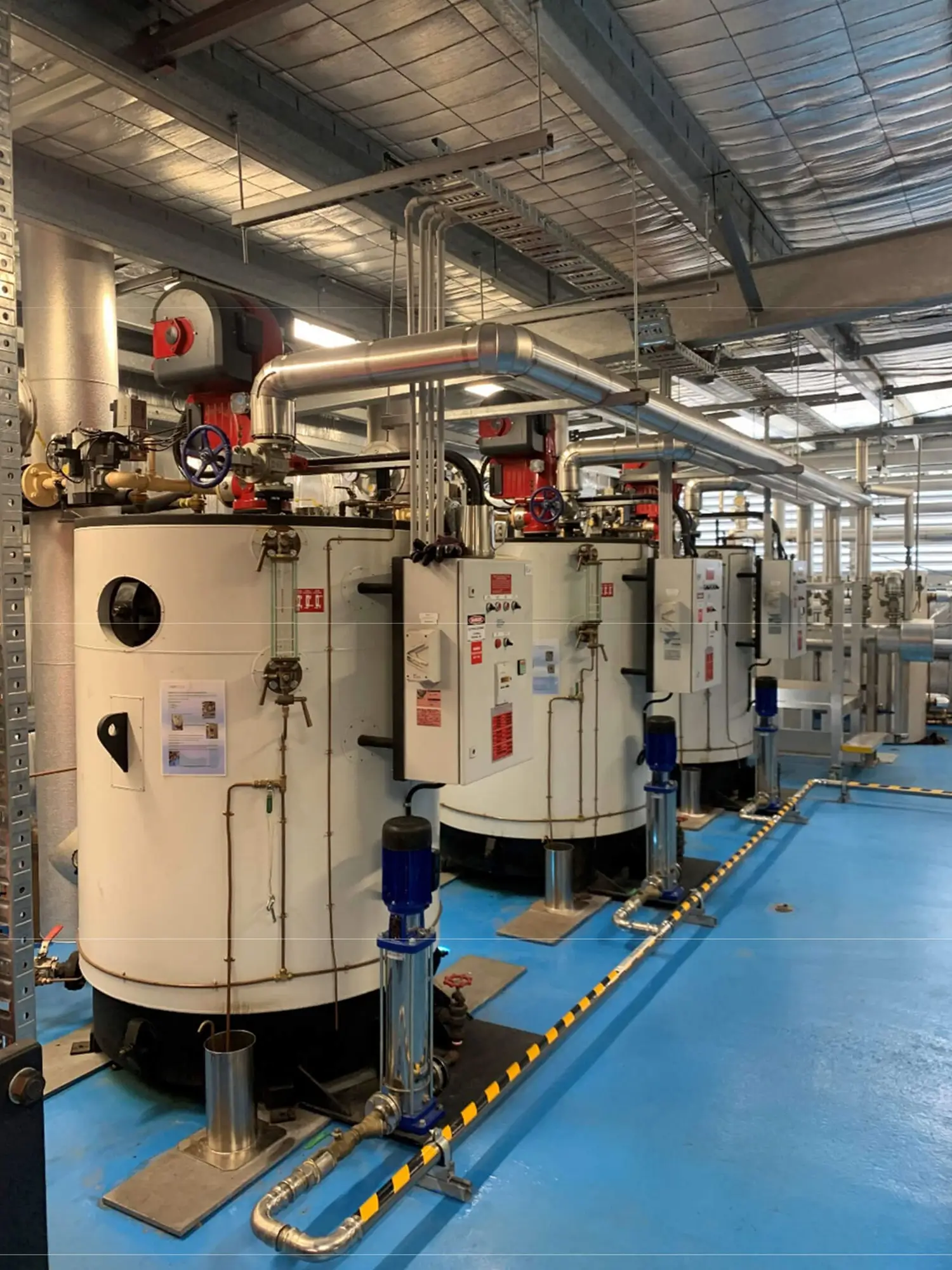

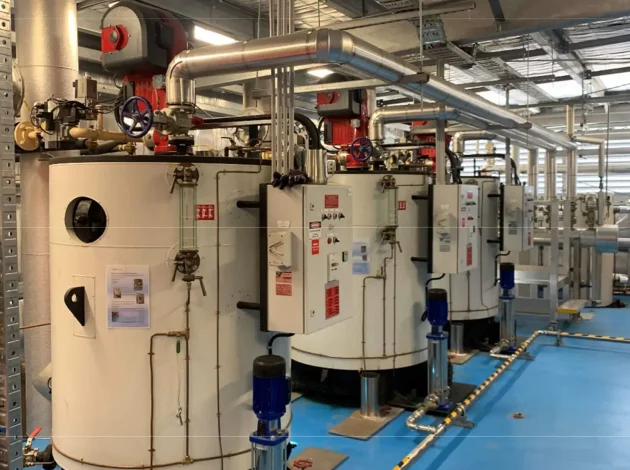

View of three 500kW steam boilers installed recently.

Steam and Boiler Installation-4

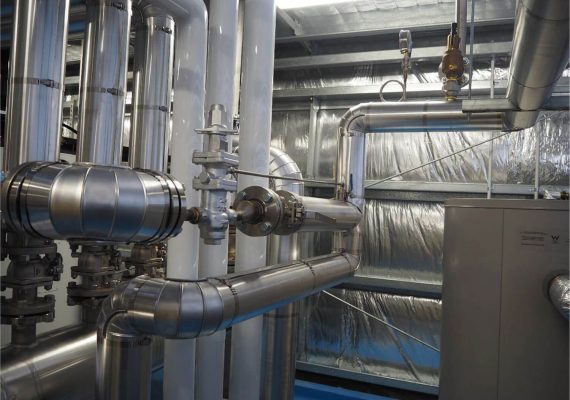

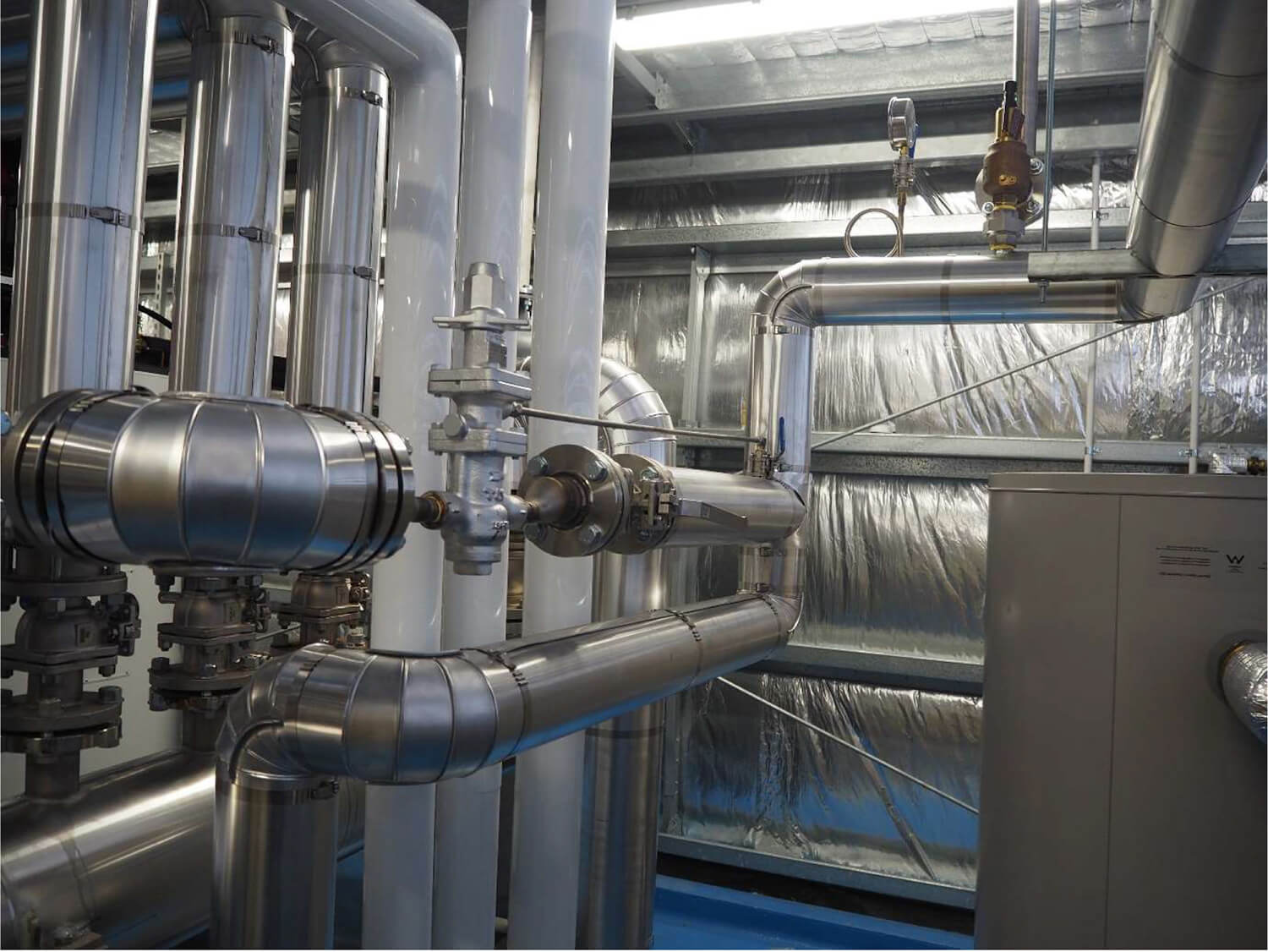

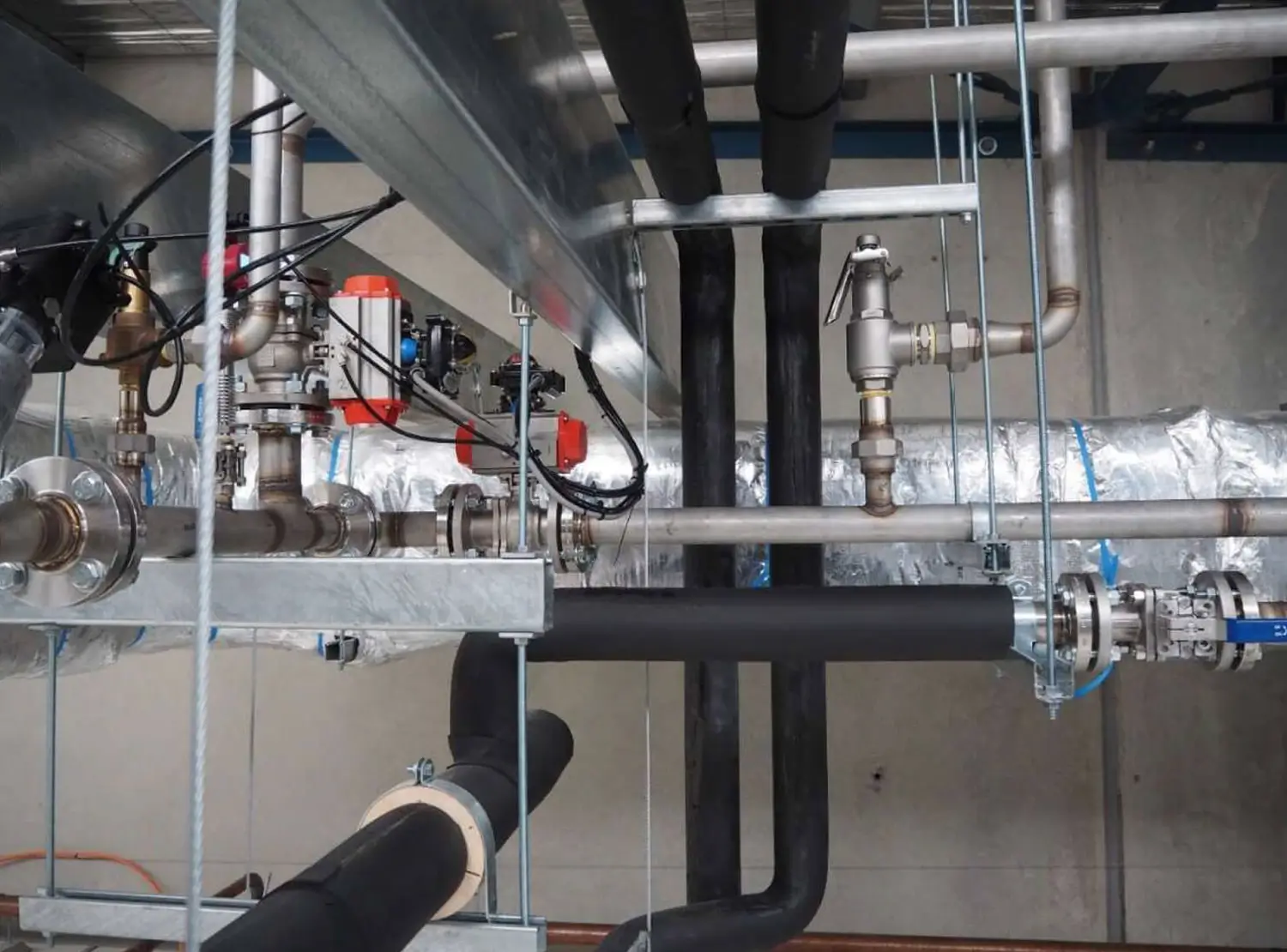

View of a steam pressure reduction station to provide steam to a euro bin washer and CIP system.

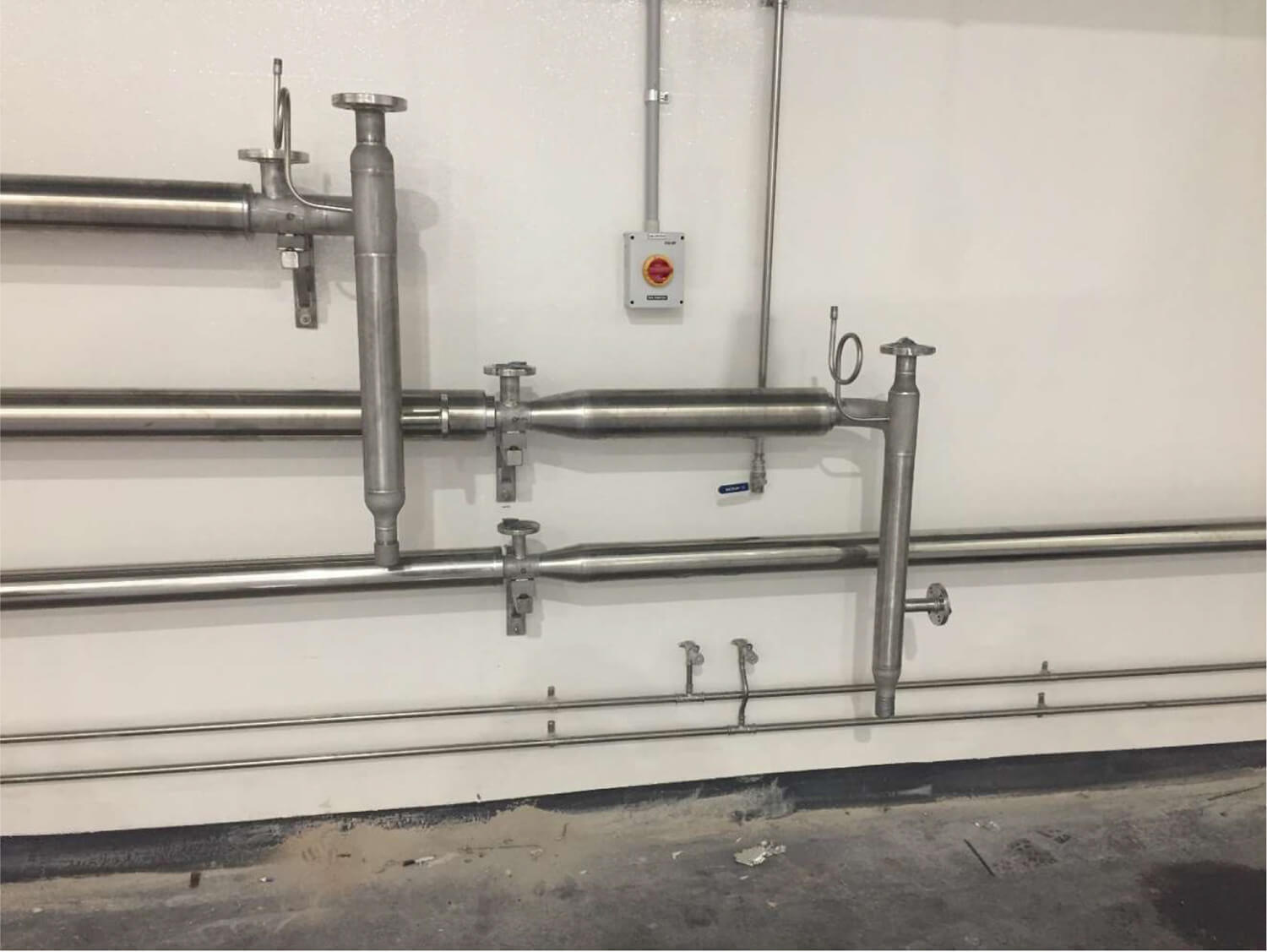

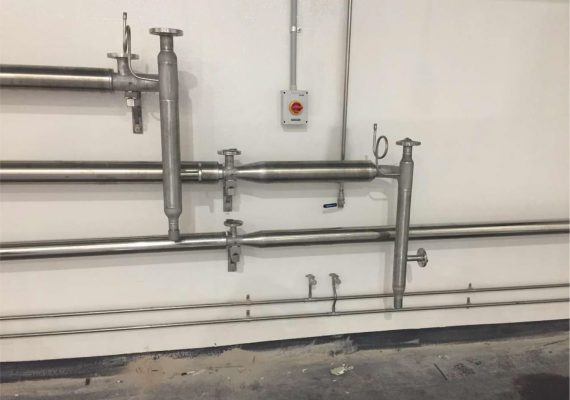

Steam and Boiler Installation-5_1

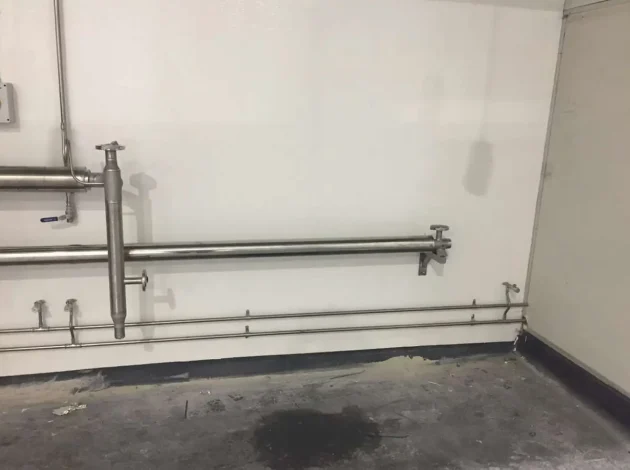

Steam and condensate supply lines with welded stainless steel insulation enclosures.

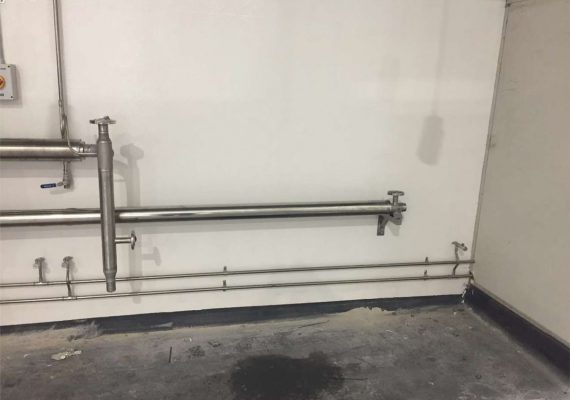

Steam and Boiler Installation-5_2

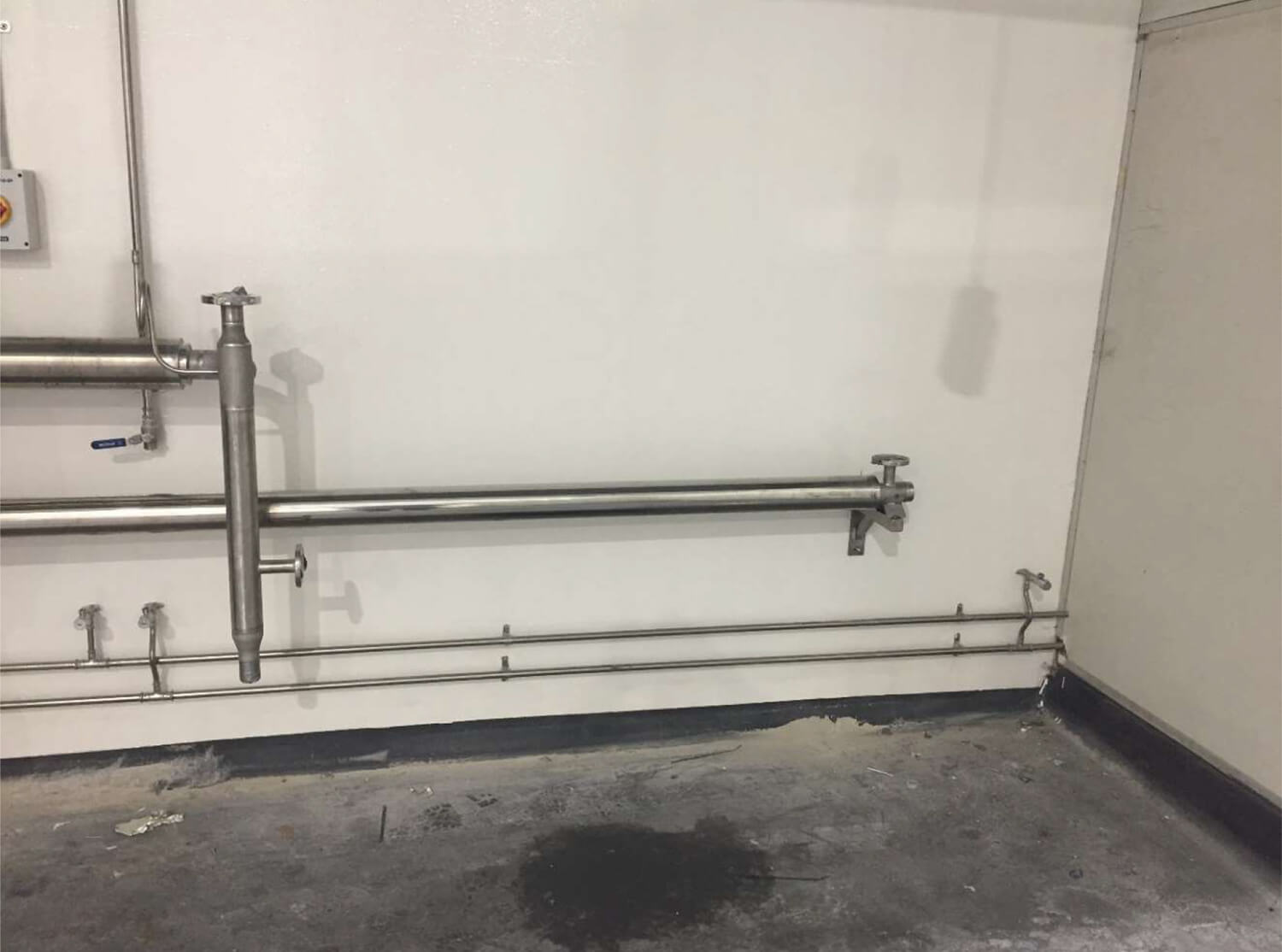

Steam and condensate supply lines with welded stainless steel insulation enclosures.

Steam and Boiler Installation-6_1

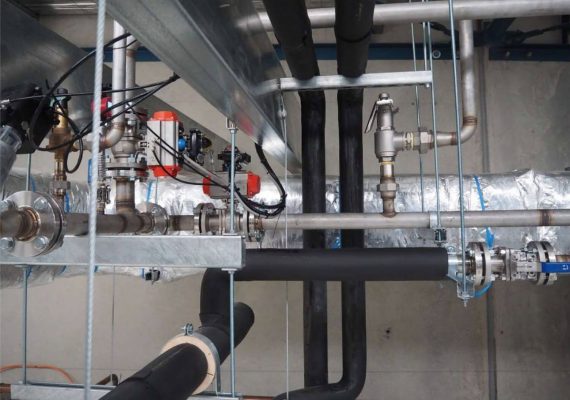

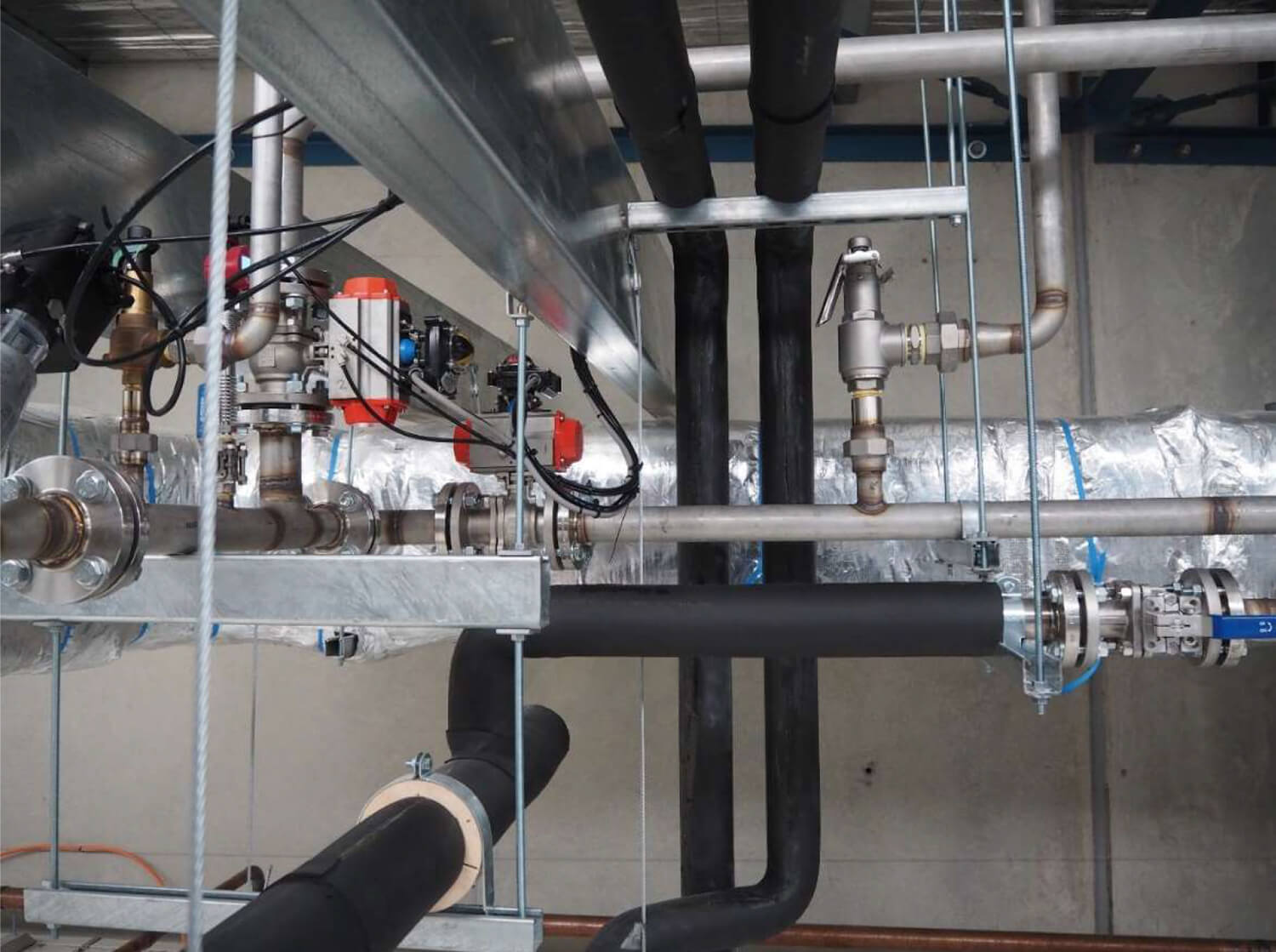

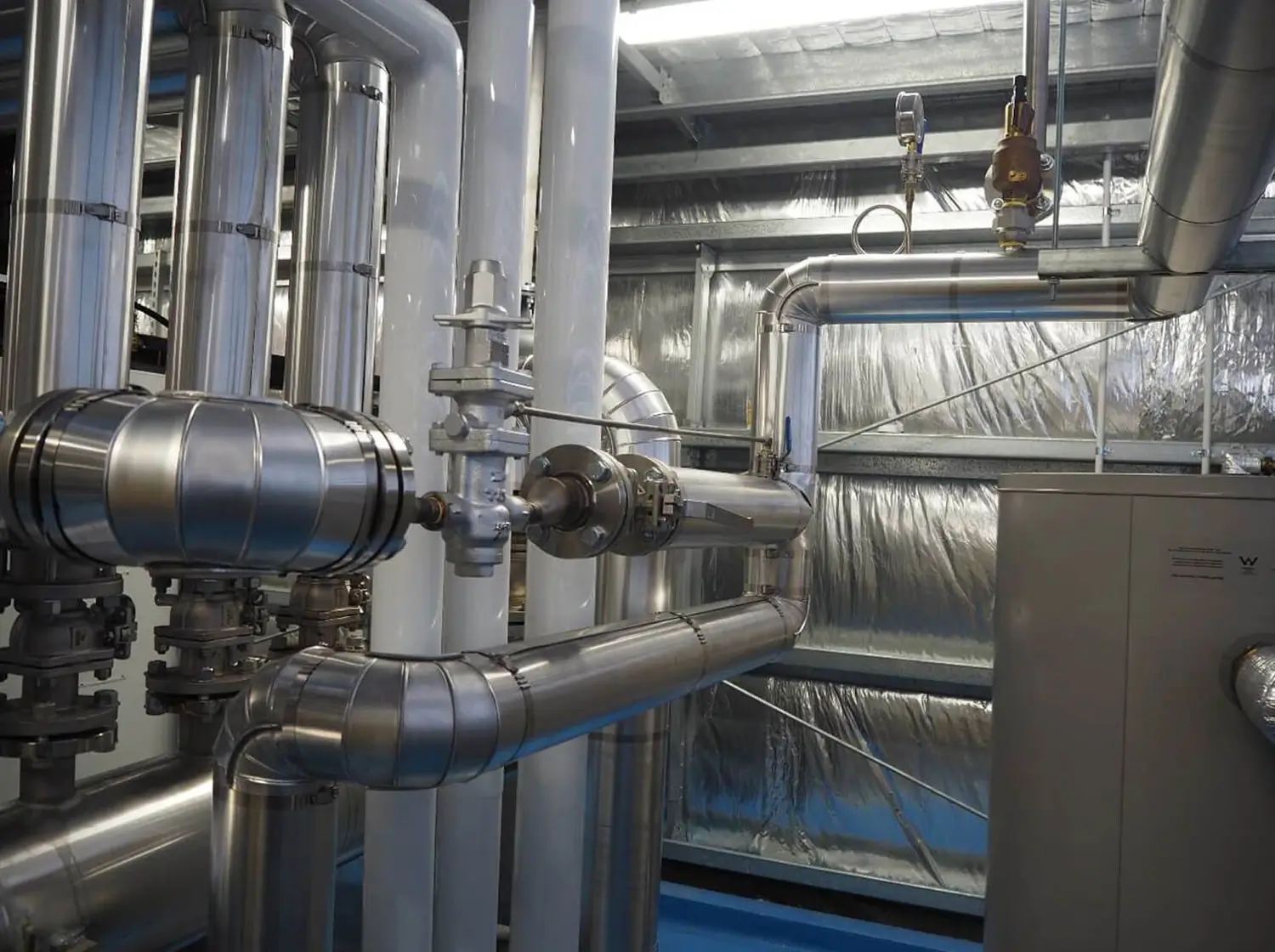

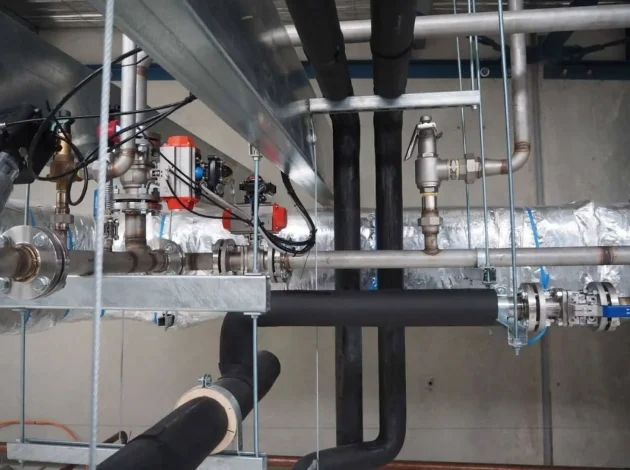

View of steam reticulation system from a recent installation.

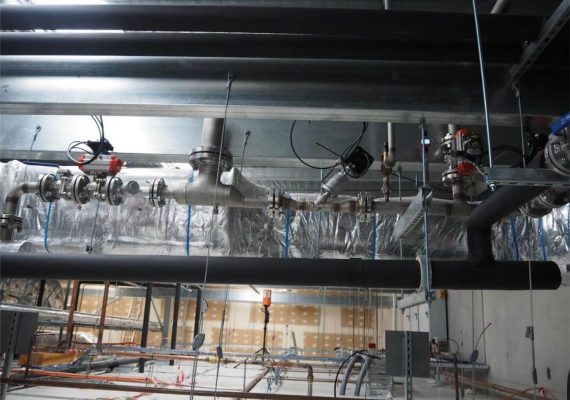

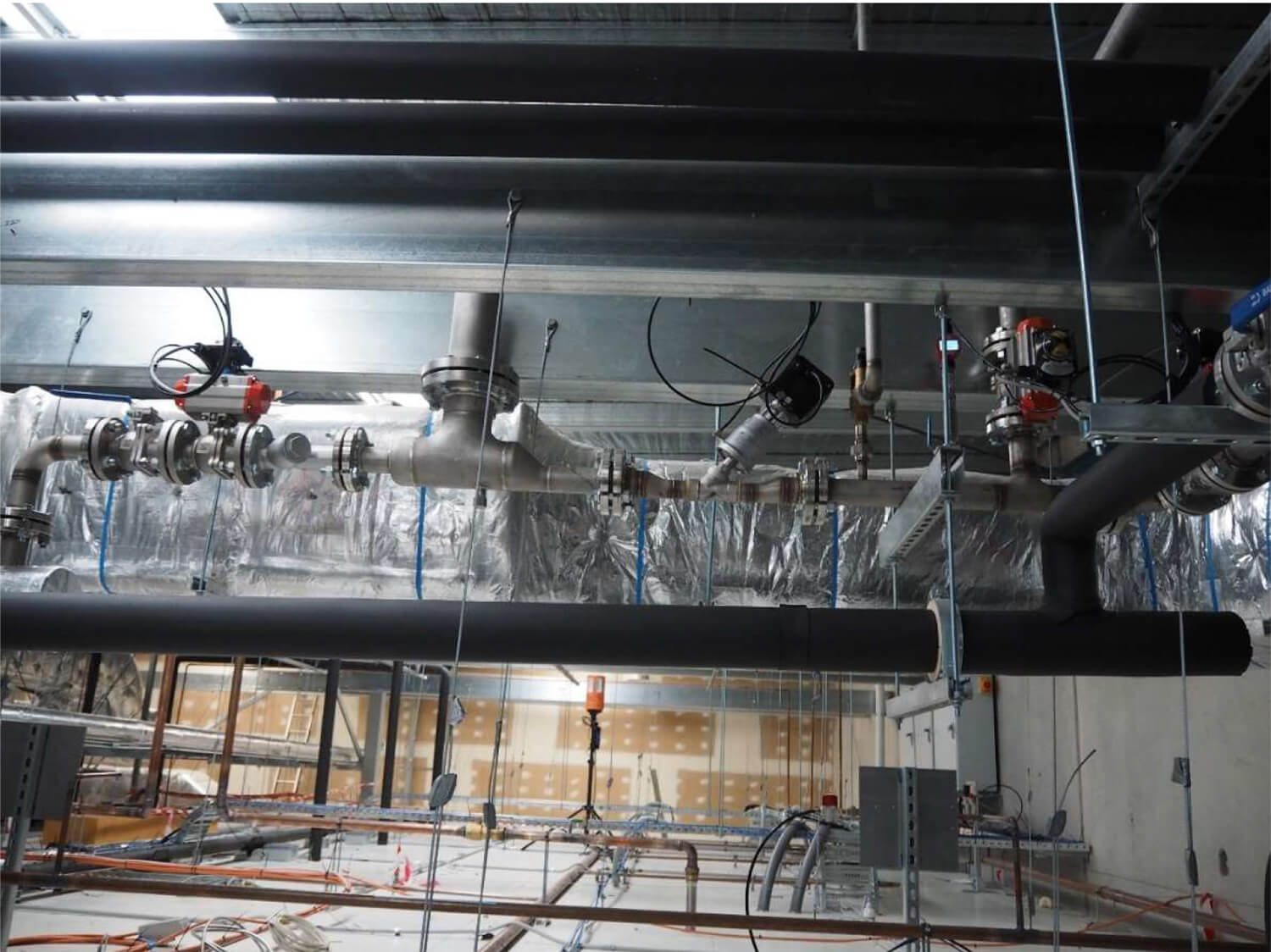

Steam and Boiler Installation-6_2

View of steam reticulation system from a recent installation.
